How to Steal an Election by Hacking the Vote

By Jon "Hannibal" Stokes

Wednesday, October 25, 2006

One bad apple...

What if I told you that it would take only one person—one highly motivated, but only moderately skilled bad apple, with either authorized or unauthorized access to the right company's internal computer network—to steal a statewide election? You might think I was crazy, or alarmist, or just talking about something that's only a remote, highly theoretical possibility. You also probably would think I was being really over-the-top if I told you that, without sweeping and very costly changes to the American electoral process, this scenario is almost certain to play out at some point in the future in some county or state in America, and that after it happens not only will we not have a clue as to what has taken place, but if we do get suspicious there will be no way to prove anything. You certainly wouldn't want to believe me, and I don't blame you.

So what if I told you that one highly motivated and moderately skilled bad apple could cause hundreds of millions of dollars in damage to America's private sector by unleashing a Windows virus from the safety of his parents' basement, and that many of the victims in the attack would never know that they'd been compromised? Before the rise of the Internet, this scenario also might've been considered alarmist folly by most, but now we know that it's all too real.

Thanks to the recent and rapid adoption of direct-recording electronic (DRE) voting machines in states and counties across America, the two scenarios that I just outlined have now become siblings (perhaps even fraternal twins) in the same large, unhappy family of information security (infosec) challenges. Our national election infrastructure is now largely an information technology infrastructure, so the problem of keeping our elections free of vote fraud is now an information security problem. If you've been keeping track of the news in the past few years, with its weekly litany of high-profile breaches in public- and private-sector networks, then you know how well we're (not) doing on the infosec front.

Over the course of almost eight years of reporting for Ars Technica, I've followed the merging of the areas of election security and information security, a merging that was accelerated much too rapidly in the wake of the 2000 presidential election. In all this time, I've yet to find a good way to convey to the non-technical public how well and truly screwed up we presently are, six years after the Florida recount. So now it's time to hit the panic button: In this article, I'm going to show you how to steal an election.

Now, I won't be giving you the kind of "push this, pull here" instructions for cracking specific machines that you can find scattered all over the Internet, in alarmingly lengthy PDF reports that detail vulnerability after vulnerability and exploit after exploit. (See the bibliography at the end of this article for that kind of information.) And I certainly won't be linking to any of the leaked Diebold source code, which is available in various corners of the online world. What I'll show you instead is a road map to the brave new world of electronic election manipulation, with just enough nuts-and-bolts detail to help you understand why things work the way they do.

Along the way, I'll also show you just how many different hands touch these electronic voting machines before and after a vote is cast, and I'll lay out just how vulnerable a DRE-based elections system is to what e-voting researchers have dubbed "wholesale fraud," i.e., the ability of an individual or a very small group to steal an entire election by making subtle changes in the right places.

So let's get right down to business and meet the tools that we're going to use to flip a race in favor of our preferred candidate.

Note: I'm not in any way encouraging anyone to actually go out and steal an election. This article is intended solely as a guide to the kinds of information and techniques that election thieves already have available, and not as an incitement to or an aid for committing crimes.

E-voting 101: touch-screen machines and optical scanners

There are many different types of electronic voting machines available from a whole host of large and small vendors, but this article will focus primarily on one type: the direct-recording electronic (DRE) voting machine. Nonetheless, optical scanners are vulnerable to many of the same exploits that I'll describe for the DRE; the only difference is that optical scanners leave a reliable paper audit trail that could be used to tell if an election has been tampered with, but such audits must actually be carried out to have any impact.

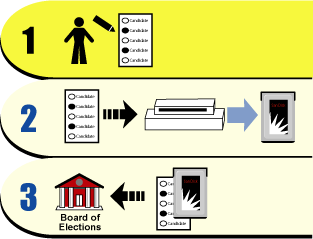

DREs and optical scanners are far and away the two most popular types of voting machines in use today. The following statistics break down by popularity the types of voting machines used in 2006:

Voting equipment reported for the 2006 elections

You might think that the supervisor smartcard cloning, viruses, and unauthorized accesses that I've described above are purely hypothetical. If the DRE in question is the popular Diebold AccuVote TS, then they're not at all hypothetical. All of the attacks that I just summarized, and many more, have been implemented by multiple teams of security researchers. Just for kicks, take a break from reading and go watch this little demonstration video.

But before we talk in more detail about the AccuVote, let's take a step back and get a big-picture look at the kinds of new opportunities that the would-be election thief has at her disposal, thanks to DREs.

Bad apples and barrel sizes, or how to do a lot with a little

If we want to steal an election, then ideally we want as few warm bodies in on the scam as possible. All of the old-school election manipulation tricks, like voter intimidation, vote-buying, turn-out suppression, and so on, require legions of volunteers who know exactly what's going on; but in the new era of electronic vote tampering, an election thief can do a whole lot more with a whole lot less.

Election security experts break down voting fraud types into two main categories, based on how many bad apples it takes to swing an election: retail fraud and wholesale fraud. Retail fraud is the kind of election fraud that's most familiar to us, because it has been around for the longest time. In general, retail fraud involves multiple bad apples at the precinct level, carrying out any number of bad acts involving multiple voters and voting machines. Some examples of retail fraud are ballot stuffing, restricting polling place access by means of intimidation, vandalizing individual machines to make them unusable, counterfeiting ballots, and so on.

Wholesale fraud is relatively new, and it involves a single bad apple who can affect an election's outcome at the precinct, county, and state levels. (Actually, by this definition, wholesale fraud is as old as the poll tax. But let's stick to wholesale fraud involving electronic voting machines for now.) So with wholesale fraud, one bad apple can affect different barrels of various sizes, depending where in the election process she's placed.

The table below breaks down the newer types of fraud that electronic voting machines have made available to election thieves:

Wholesale and retail fraud

I won't rehearse the rest of the long list of retail fraud opportunities made available by the AccuVote TS. Some searching will turn up dozens of reports and thousands of web pages with as much detail as you can stand on how to create mischief with these machines in a polling booth. Now it's time to move on to the good stuff: undetectable wholesale fraud.

Wholesale fraud on the AccuVote TS

In order to understand how we can commit wholesale fraud on the AccuVote TS, we first need to know a bit more about how the system is structured. In particular, we have to take a closer look at the unit's software, and how it records votes.

Computer scientists often speak of the multiple levels of software that make up a system as a "software stack." Each layer in the stack supports the layer above it, and malicious code in a low-level layer can affect all of the layers above.

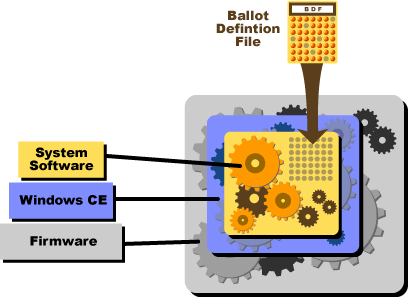

Figure 4: The Diebold AccuVote TS software stack

As you can see from Figure 4, the AccuVote's software stack consists of three primary layers. At the lowest level, closest to the hardware, sits the firmware layer. The AccuVote's firmware is the first program to be loaded into memory when the machine boots, and it takes care of loading the next layer of the stack, which is the operating system.

Note: Because all of a DRE's software loads from a pool of internal Flash memory, DRE vendors tend to refer to every piece of software in the system as "firmware." In this article, I'll stick to the standard firmware/OS/application distinction, just to avoid confusion.

The AccuVote's operating system is a custom version of Windows CE. Diebold licenses Windows CE from Microsoft and modifies it to fit the AccuVote. (For the uninitiated, the operating system is really a collection of different software libraries that handles all of the low-level tasks in the system, like reading and writing to the internal storage device, displaying things like windows and checkboxes on the touchscreen, managing files and applications, and so on.)

When Windows CE boots on the AccuVote, it loads the main system software application that actually handles the ballot display and voting process. The system software selects the proper ballot definition file to present to the voter, and it then uses that file to record the voter's selections on the Flash memory card.

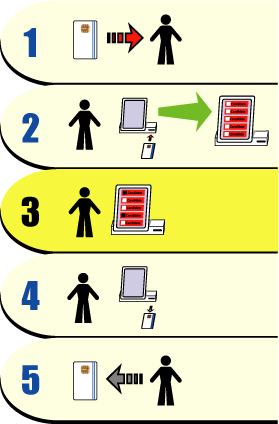

So with this concept of a software stack in mind, let's expand step 3 from Figure 2 to see exactly how the AccuVote records the voter's touch-screen selections.

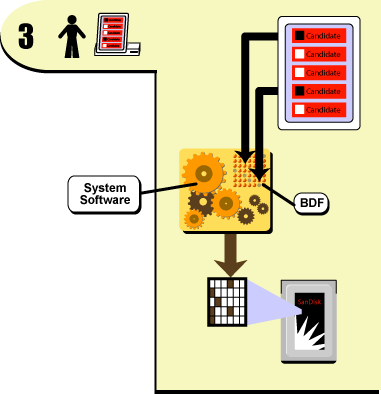

Figure 5: Casting a vote on the Diebold AccuVote TS

As you can see in Figure 5, the voter's selections are read from the touch screen by the AccuVote's internal system software. The system software uses the BDF to translate the selections into a format that can be written to the internal storage card, where they're stored along with all of the other votes cast on that machine.

If you were going to steal an election with an AccuVote, one of the best and easiest methods is to manipulate the ballot definition file. On the AccuVote, the BDF is completely unencrypted, so it just sits there in the machine's memory open to all comers. Malicious software embedded in any layer of the software stack can easily get at the BDF and alter it so that selections made for one candidate are recorded on the machine's memory card for another candidate. If the software is programmed to remove itself after the election, then there would be absolutely no way for anyone to know that the results are fraudulent.

Of course, an attacker with access to any or all of the layers of the software stack can do more than just manipulate the BDF so that votes are misrecorded in real-time. He could conceivably ignore the BDF entirely and just change the machine's vote totals directly on the memory card, so that they produce a desired outcome. Indeed, just as is the case with a regular personal computer, the possibilities for a malicious Trojan to make mischief on the DRE is limited only by the skill and imagination of the attacker.

Ed Felten's team at Princeton was able to quickly upload a vote-stealing Trojan to the AccuVote via the PCMCIA slot in less time than it would take many people to complete an electronic ballot. Furthermore, they also created a viral version of the Trojan that could infect any card inserted into the PCMCIA slot with vote-stealing software that would then infect any machine into which the tainted card was inserted. The newly infected machines would in turn infect other cards, which would infect other machines, and so on. In this way, the vote stealing "Princeton virus" could travel across an entire precinct or county, given enough time.

The viral nature of the Princeton attack is one way to commit wholesale undetectable vote fraud, but there are others that are even more efficient and require no physical access to a machine at any point. Specifically, if any one of the institutions responsible for loading software onto the AccuVote (or any other DRE for that matter) has been compromised, either by an internal mole or an outside cracker who has hacked into the company's internal network, then something like the Princeton virus could be planted in the firmware, operating system, or system software build that goes on machines across an entire county or state.

In other words, you know how Apple just accidentally shipped a few thousand iPods with a Windows virus embedded in them? If you replace "Apple" with "Diebold" and "iPod" with "AccuVote," then you've got a recipe for wholesale election theft.

Think about that for a moment, and let it sink in. To have confidence in the results of an election using DREs, you no longer have to put your trust solely in the security practices at the Board of Elections. Now, you have to have confidence in the security of the DRE vendor's corporate networks, and in their human resources departments, and in the security practices and personnel of anyone else who touches the software that goes into a DRE (i.e. a third-party software vendor).

To give you some perspective on the level of security at voting machine companies, there have been actual incidents that involve intruders breaking into the internal networks of three DRE vendors and gaining access to sensitive information:

1. A hacker penetrated VoteHere's intranet in 2003.

2. Diebold was also the victim of a hacker in 2003, in a highly publicized intrustion in which thousands of internal company emails were stolen and made public.

3. ES&S was burglarized in 2003, and sensitive information, including voting software, was stolen. The company didn't notify the public until three years later.

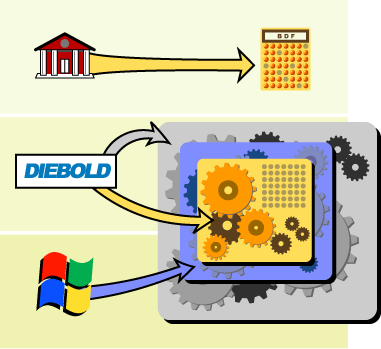

Figure 6 gives you a visual breakdown of the three main institutions that contribute layers to the AccuVote's software stack: the county Board of Elections, Diebold, and Microsoft. Again, one well-placed bad apple in any one of those institutions, or an unauthorized intruder with access to the right network, could steal a state-wide election in Georgia, Maryland, or any other county or precinct that relies on the AccuVote TS.

Figure 6: The Diebold AccuVote TS software stack

In some cases, the BOE isn't actually involved in creating the ballot definition file. The county's election workforce is so understaffed and starved for volunteers, and the rollout of DREs before an election is so rushed, that some counties and just let Diebold come in and handle the entire election—BDF creation, certification, logic and accuracy testing, set-up, tear-down, the works. The whole election is just handed over the private sector to run, with the county providing practically no oversight because they don't even really know how to use the systems without hand-holding.

Logic and accuracy testing

One of the last lines of defense against the kinds of intrusions described here is the logic and accuracy (L&A) test. The idea behind the L&A is that voting machines are put through a mock election by county officials, and their outputs are compared to their inputs to confirm that the machines are faithfully recording the totals.

There are a few problems with the L&A as a barrier against election fraud. First, the Princeton virus can tell when the machine is doing a self-run L&A test, and it will produce correct results under those conditions. Second, it's not at all difficult to imagine how a Trojan programmer would detect that an L&A test is being carried out: check the system clock to see if the voting is taking place on election day, or on some other day; see if the number of votes cast is less than the expected number; see if the polling lasts for a shorter period of time than expected; and so on.

Finally, each L&A test takes time, which is why it's impossible to fully test every single DRE before an election. If you could ensure that all of the software on a pool of DREs is exactly the same, then you could fully test one DRE in a realistic mock election and be done with it. Such a testing protocol would catch any Trojan embedded in the software stack that was written by an author who's not creative enough to fool a really thorough L&A test. But even the most rigorous and realistic L&A test couldn't thwart a "knock attack."

Briefly, a "knock attack" is where the Trojan doesn't wake up and do its business until it receives a signal of some sort from the attacker. For networked machines, this could be something as simple as a scan on a certain port range. For nonnetworked touchscreen machines, Avi Rubin has suggested that an attacker could touch the screen in certain place, or make a sequence of specific touches (e.g., top left, top right, top left). Or, an attacker could send a signal to the AccuVote's built-in IrDA port with a handheld remote (if there's an IR sensor actually installed and accessible). There are a number of possibilities here, but you get the idea.

Realistically, the L&A is just one of a series of tests that should take place at every step of the voting machine procurement, deployment, and election process. The machines should be audited independently and tested by the government before they're purchased by the state or county; they should be tested on delivery; they should be tested prior to polling; and a random sample should be tested during polling.

Fundamentally, however, it doesn't matter how thoroughly you test a paperless direct-recording electronic voting machine before, during, or after an election. A determined cracker can always find a way to compromise the system in an undetectable way. The only real protection against wholesale election fraud is genuine auditability, and that's a feature that paperless DREs lack by design.

So far in this article, I've covered two of the three bullet points that I listed for undetectable wholesale fraud methods: altering the vote recording process, and altering the record of votes. Now let's look at the remaining fraud method: altering the tabulation process.

(Mis)counting the vote

You might have a hard time imagining that a company like Diebold could ever be compromised from within or without by someone who would want to steal an election by embedding a Trojan in the AccuVote's software stack. Or, alternately, you might have faith that the testing and voting machine certification process in your state is thorough enough to catch even the most cleverly hidden Trojan. Even so, you still shouldn't be complacent about DREs, because there are other moments in the lifecycle of an electronic vote where that vote can be altered.

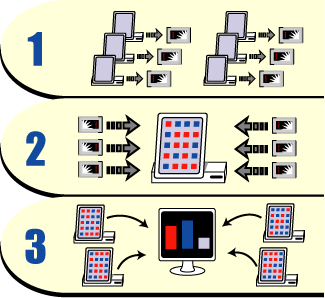

Figure 7 below shows the process by which votes are collected and tabulated. The steps in the process are as follows:

1. First, the memory cards are removed from all of the machines in a precinct.

2. One of the machines is designated as an accumulator, which means that it's that machine's job to read all of the memory cards, one by one, and compile all of their votes into one master list. So all of the removed memory cards are inserted in the accumulator, one at a time, to have their contents uploaded.

3. All of the accumulator machines in all of the precincts dial into one or more PC servers running Microsoft Windows and Diebold's General Election Management Software (GEMS). Once the accumulators connect to the GEMS server, their vote totals are downloaded and compiled, and an official tally is made.

Figure 7: Tabulating the vote with
Diebold hardware and software

Note that DREs from some vendors are made to be networked together throughout a precinct via Ethernet or wireless. In such a configuration the accumulator machine can download all of the votes from the other machines over the network, so no memory cards need to be removed from one machine and reinserted into another.

Those of you who've followed the article thus far and who have any knowledge of information security will immediately spot the vulnerabilities in the process outlined above. Let me run through a few of the opportunities for wholesale fraud that this scheme provides.

First, if the accumulator DRE happens to be running something like the Princeton virus, then it's game over. That one machine can flip the totals on every card that's inserted into it, and there will be no way to detect that any fraud has occurred. If this were happen, all of the results from an entire precinct would be tainted because of one compromised DRE.

If all of the machines in the precinct are networked (God forbid!), then stealing an entire precinct's votes gets even easier. A single compromised machine could infect the accumulator and every other machine on the network, tainting all of the results for that precinct. And if those machines are networked wirelessly(!!), then a fraudster with a laptop and a wireless card in a car outside the precinct building could conceivably have his way with all of the votes in the building.

Cracking the central tabulation (GEMS) server

The GEMS server deserves special attention as a weak point in the design of the overall system. This server is a typical PC with a typical PC software stack. In fact, I could conceivably reuse my depiction of the AccuVote TS software stack in Figure 6 by replacing "Windows CE" with "Windows XP," "System Software" with "GEMS," and "BDF" with "GEMS database."

The GEMS database stores all of the votes collected from precinct accumulators, and it's used to do the vote tabulation for a county. Because it's so sensitive, you might think it would be tightly secured. But you'd be wrong.

The GEMS database is a vanilla, unencrypted Microsoft Access database that anyone with a copy of Access can edit. So if you have physical access to the GEMS server's filesystem (either locally or remotely), then it's not too hard to just go in and have your way with the vote totals. If Access isn't installed on a particular GEMS server, just install it from a CD-ROM, or connect remotely from a laptop and edit the database that way.

Or, if you want to filch the database, upload vote-stealing software, or do something else evil, you could always carry along a USB drive in your pocket.

Many GEMS servers are connected to a modem bank, so that the accumulators can dial in over the phone lines and upload votes. One team of security consultants hired by the state of Maryland found the GEMS bank by wardialing, discovered that it was running an unpatched version of Windows, cracked the server, and stole the mock election. This great Daily Show segment, in which one of the team members describes the attack, states that they did this in under five minutes.

If the GEMS server is somehow connected to the Internet, and some of them are (in spite of Diebold's strong recommendation that they not be), then any one of a million script kiddies who can crack a Windows box can have a field day with the election...

I could go on here with the hypotheticals, but let's take a look at how this is alleged to have played out in the real world, this past August in Shelby County, Tennessee:

Evidence from election official declarations and discovery documents obtained in litigation over a recent election using Diebold machines reveals that:

Note that I haven't done any journalistic due diligence on this particular report, so I'm obliged not to vouch for its absolute veracity. But my point in reproducing it is that every one of these items is 100 percent plausible, so this incident report paints an extremely realistic portrait of how the GEMS server could be compromised to steal an election.

Finally, before I leave this topic, I want to raise the possibility that a DRE manufacturer could include an undocumented back door in the GEMS server that would leave the machine open to manipulation and fraud. Of course, it may be more than just a possibility. Such a back door has allegedly already been found, as referenced in this CERT bulletin. However, the details here are sketchy, and one researcher that I've talked to says the credibility of this report is suspect. Also, I'm going to give Diebold the benefit of the doubt and assume that this back door (if it exists) was put there for maintenance and/or testing reasons, and that it was never intended to be enabled on a production build of the software.

Spoofing the GEMS server

Physical or remote access to the GEMS server gets you the keys to the electoral kingdom, but those aren't the only ways to exploit the GEMS server to rig an election. To understand another good way to manipulate this system, we have to return to our friend the ballot definition file (BDF).

One of the most shocking revelations that the Johns Hopkins team uncovered in their security analysis of the AccuVote is that the BDF contains all of the information necessary to connect to and upload votes to the GEMS server. From p.22 of Avi Rubin's new book, Brave New Ballot:

We found that in addition to this basic data, the ballot definition file contained more sensitive, security-critical information, including the voting terminal's voting center identification number, the dial-in numbers for the end-of-the-day tally reporting, the network address of the back-end processing server, and a username and password. It was like finding somebody's wallet: in this file you'd have everything needed to impersonate the voting machine to the board of elections servers. Since there was no cryptographic authentication between the voting machines and the tallying servers, someone with a laptop and the information from the ballot definition file could dial into the board of elections computers from anywhere and send in fake vote tallies.

Rubin goes on to allege that after the release of the Hopkins report, Diebold claimed that they fixed this problem. Then a subsequent report showed that, no, they hadn't fixed it. So in response to the new report Diebold claimed to have fixed it again. Who knows if it ever truly got fixed—the Diebold source is closed and proprietary, so we have to continue taking their word for it.

The bad apple chart

The term "black box voting" is commonly used by e-voting activists to describe the nontransparent way in which elections are carried out using direct-recording electronic voting machines, with the idea being that the DRE is a "black box" that tallies votes in an invisible, proprietary, and potentially suspect manner. For my part I think the term "black box" best describes not the DRE, but the DRE manufacturer. The entire voting machine company—its corporate network, its management, its staff, its internal policies and procedures—is a giant black box that we, the voters, must trust is free of malicious influences from within and without.

So if you learn one thing from this article, I hope it's this: DREs multiply tremendously the sheer number of institutions and people that you have to trust in order to have confidence in an election's results. In this last part of the article, I'd like to give you a feel for who you're relying on when you walk into a polling booth this November and make a touchscreen selection for your candidate of choice.

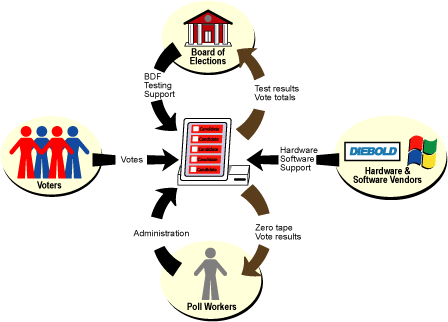

Take a look at Figure 8, which is diagram of inputs and outputs from a generic DRE. This is my own version of a diagram that appears in the Ohio Compuware report.

Figure 8: Who interacts with a DRE

Throughout the course of this article, I've outlined some ways in which a single bad apple in any of these groups could compromise election results. Now I'll sum up that analysis in what I'll call a bad apple chart (really more of a diagram than a chart), shown in Figure 9:

Figure 9: The Bad Apple Chart

The basic idea behind the chart is that you can place a bad apple in any one of the boxes, and any number of the voting machines within that region could be compromised. The "third party system software" referenced in the outermost box could be any third party software used by multiple vendors (here Diebold and ES&S, for example) on either the DREs or the central tabulator PCs. Finally, note that the counties and precincts are sized differently, just to show some variation.

If you wanted to steal an election, the best place to drop a bad apple would be at the operating system vendor. E-voting expert Douglas Jones has proposed the following such scenario, merely as an example to show what's possible:

In the next version of their window manager, a major vendor includes a little bit of code as part of the "open new window on screen" mechanism. If today is the first Tuesday in November of an even numbered year, this code checks the contents of the window. If the window contains the strings "Straight Party," "Democrat," "Republican," "Socialist," and "Reform," and if the window contains a "radio button" widget, allowing the selection of one out of n alternatives, the software would, one time out of ten, exchange the words "Republican" and "Reform."

What does this little bit of code do? On election day, and on no other day, it throws 10 percent of the straight party Republican vote to a large third party that is known to attract many Republican-leaning voters. In closely contested Democratic-Republican contests, this could easily swing the outcome to favor the Democrats, and on a national scale, it could easily provide the winning margin for control of Congress or the White House...

This kind of attack does not require either massive conspiracy or corporate approval or cooperation! So long as a single programmer can covertly incorporate a few lines of simple code into a component that he or she knows will end up in a large fraction of all voting machines, and so long as that code is not subject to exhaustive inspection, the system is vulnerable! Someone intent on fixing an election does not need to buy the support of the company, they only need to buy the support of one programmer with access to a key component!

If you don't think that it's possible someone to buy off, say, an individual programmer with access to the right window manager libraries, or you think that the OS vendor would eventually catch the crack with a source code review (even in spite of clever obfuscation on the part of the mole), then you'll be heartened to know that Jones has confirmed my suspicion that a virus could easily make the modification described above... or, it could make some other, equally clever modification that no one has thought of yet. All that's needed is to get the virus onto a machine at a DRE vendor that houses builds of one or more layers of their DRE's software stack, and you have the capability to do undetectable wholesale fraud.

This last point brings me to next region into which a bad apple could be profitably inserted: the DRE vendor (or the vendor's network). There's no need to say much more about this, though, because most of the article has been taken up with this type of scenario. Bad apples in this area can commit undetectable wholesale fraud.

At the county level, a worker at the BOE has many, many opportunities to commit wholesale fraud by exploiting her regular access to the "machinery of democracy" at all points in the election process to upload vote-stealing software onto a DRE, an accumulator, a central tabulation server, or all three.

Finally, at the precinct level, it's possible for a single bad apple (a poll worker, or even a voter) to commit any number of bad acts: disenfranchisement of a precinct by means of vandalism, multiple voting, deleting votes, uploading vote-stealing software, etc.

Wholesale fraud at the precinct level

You might think that you'd have to commit an infeasibly large number of acts of precinct-level fraud to steal an entire election, but you'd be wrong. Gerrymandered voting districts, in which whole precincts lean heavily in one direction or another, make disenfranchisement attacks on precincts a highly effective form of election fraud.

For attacks like this, urban voters are especially vulnerable, because they have a higher number of populous precincts clustered together in a smaller geographic area. It's much easier to use vandalism (disguised as machine malfunction) to disenfranchise multiple urban precincts on election day than it is go all over the countryside and suburbs in a state like, say, Ohio to break voting machines that are scattered in isolated elementary schools.

Finally, it's extremely important to note that, in the absence of a meaningful audit trail, like that provided by voter-verified paper receipts, it is virtually impossible to tell machine malfunction from deliberate vandalism. Pioneering election security researcher Rebecca Mercuri has told me that she's actually much more concerned about "disenfranchisement of voters due to the strategic denial-of-service that currently masquerades as malfunctions," than she is about "manipulation of election equipment and data files in order to alter election outcomes, although both remain problematic."

When you have a rash of voting machines that have their memories wiped, their votes erased, or their number of votes mysteriously inflated; when you have reports of machines that crash or refuse to respond; when many machines record a vote for the wrong candidate—all of this could just as plausibly be construed as evidence of fraud as it could be of spontaneous malfunction, because there's simply no way to tell the difference in most cases.

Conclusions: take-home points and parting thoughts

The picture that I've painted here about the state of the American electoral system is bleak and depressing. Even more depressing is the fact that absolutely nothing can be done to address these vulnerabilities in any substantial way before the November midterm elections. Really, the only thing that citizens can do for the midterms is get involved by volunteering at their local precinct and keeping their eyes and ears open. Watch everything, and record everything where possible.

Right now, the only thing standing in the way of the kind of wholesale undetectable election theft that this article has outlined is the possibility that DREs were forced onto the public too rapidly for election thieves to really learn to exploit them in this cycle. There's always a gap between when a security vulnerability is exposed and when it's exploited, so let's all hope and pray that November 7 falls within that time window.

In the medium- and long-term, it is just as much of a certainty that many of these vulnerabilities will be exploited as it is that, say, major new Windows security vulnerabilities will be exploited. Indeed, the stakes in stealing an election are much, much higher than they are in the kind of petty hacking that produces today's thriving ecosystem of PC viruses and trojans. I've outlined the way (already widely known) in this article, and I don't doubt that someone, somewhere, has the will to match that way. Unless security practices and electoral procedures are upgraded and standardized across the country, and unless meaningful auditability is mandated (preferably a voter-verified paper trail) nationwide, then the probability of a large-scale election theft taking place approaches certainty the longer we remain vulnerable.

In conclusion, let me summarize what I hope you'll take home with you after reading this article and thinking about its contents:

Finally, it's worth reiterating that optical scan machines are vulnerable to many of the same exploits as the DREs on which this article focuses. Optical scan machines do leave a paper audit trail, but that trail is worthless in a state (like Florida) where manual audits of optical scan ballots are not undertaken to clear up questions about the unexpected returns from certain precincts. I've been told that such audits are now prohibited in Florida by law in the wake of the 2000 voting scandal.

Postscript

In researching this article, I talked on- and off-the-record with a number of prominent experts in the electronic voting field. The following e-mail response from computer scientist Peter Neumann sums up the present state of chaos heading into the November midterm election, and it also communicates some of the frustration (and fear) that I heard echoed in the responses of the other researchers whom I questioned.

The problem is much deeper than most people realize. The standards are extremely weak (1990 and 2002 both), and VOLUNTARY. The systems are built to minimum standards rather than attempting to be meaningfully secure. The evaluations are commissioned and paid for by the vendors, and are proprietary. The entire voting process consists of weak links—registration, voter disenfranchisement, voter authentication, vote casting, vote recording, vote processing, resolution of disputes (which is essentially nonexistent in the unauditable paperless DREs), lack of audit trails, and so on. You cannot begin to enumerate the badness of the present situation.

Paradoxically, the media blizzard of disparate facts, figures, vulnerabilities, acronyms, and bad news from a huge list of states, counties, and precincts, is in large measure responsible for the current lack of an all-out panic among the public and political classes as we head into the November mid-terms. This steadily roiling storm of e-voting negativity has resulted in a general uneasiness with DREs among the public and the media, but the threat feels diffuse and vague precisely because there are just so many things that could go wrong in so many places.

To get a sense of the problems that security researchers have in boiling all this bad news down into a single threat scenario that's vivid enough to spur the public to action, just imagine yourself travelling back in time to 1989 to testify before Congress about "the coming plague of identity theft." Or how about, "the rising terrorist threat from Islamic fundamentalism."

My own personal fear is that, by the time a whistleblower comes forth with an indisputable smoking gun—hard evidence that a large election has been stolen electronically—we will have lost control of our electoral process to the point where we will be powerless to enact meaningful change. The clock is ticking on this issue, because a party that can use these techniques to gain control of the government can also use them to maintain control in perpetuity.
